Xplova Combo Cadence Sensor

---------------------------------------------------------------------------------------------------

The combo cadence (includes the cadence sensor and a speed sensor) attaches to the chain stay of your bike to help you track your speed and cadence accurately

A) Pairing  the Combo Cadence Sensor

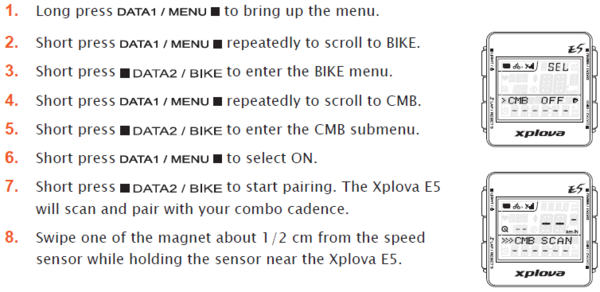

While E5 successfully paired successfully with a Combo Cadence Sensor,
below the CMB SCAN successful will display numeric on Lower Screen of E5.
The significance of the numeric is the ID of CMB.
(Note: all CMB ID are different)

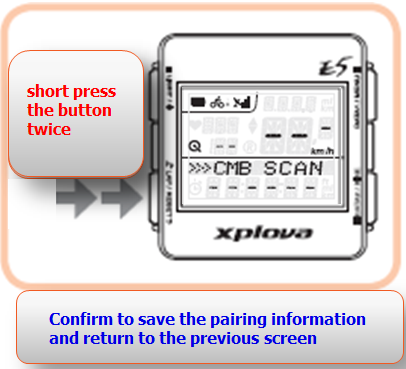

After Combo Cadence sensor complete to pair with E5, you have to short press the button “LAP/RESET” twice. Confirm to save the pairing information and return to the previous screen.

If you want to know more clearly, you can refer to the following pairing videos.

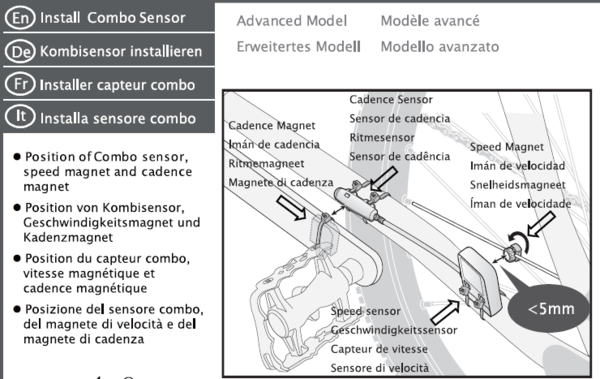

B) How to install combo cadence sensor? you can refer to the following image.

Or Follow the demonstration,

After pairing the combo cadence sensor, install the sensor on your bike.

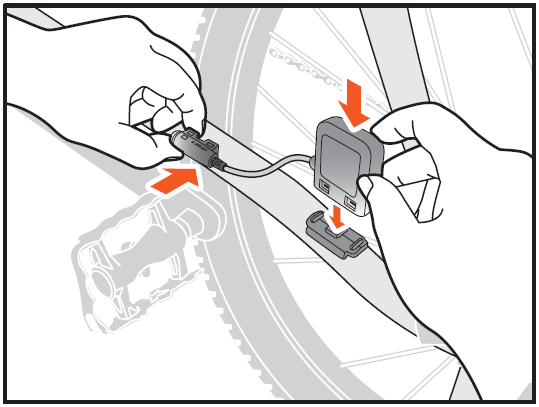

1)Position the sensor on the chain stay of your bike

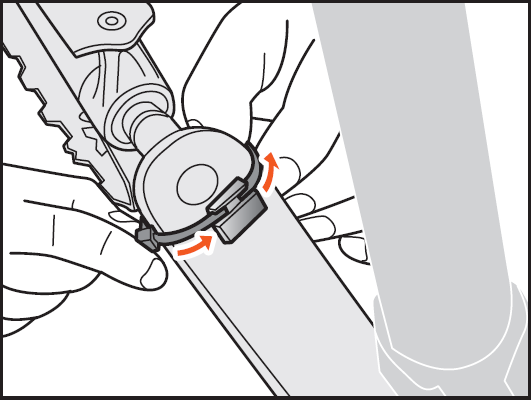

2)Use the supplied cable ties to hold the sensor in place. Do not fully tighten.

3)Attach the magnet to a spoke. Do not fully tighten

 4) Attach the magnet to the left crank. Do not fully tighten

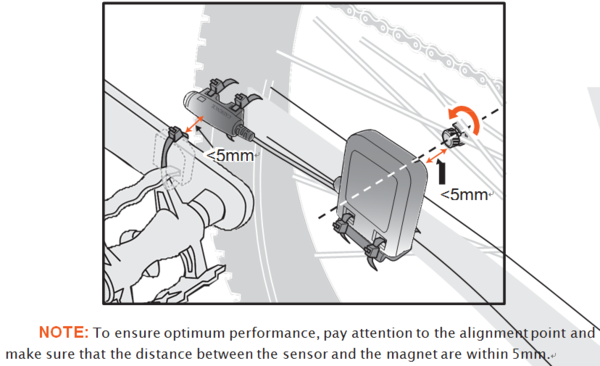

5) Adjust the magnets and the sensors, making sure the air gap between sensor markings and magnets is less than 5 mm

6) When setup is complete, tighten the cable ties

Every bicycle frame size is not the same.When you want to assemble combo sensor to the frame, you abide by assembling principle (Assembly principle is the same).Therefore, some users speed sensor assembly will skew, or cadence sensor assembly will skew.
As long as it can be pairing, the skew assembled position is also possible. Please refer to the actual most suitable for you assemble pictures.

C)You can visit Eric’s blog.

    Xplova E5 “Perfect version” sensor Installment   http://goo.gl/tFScV

D)Or reference other actual illustration

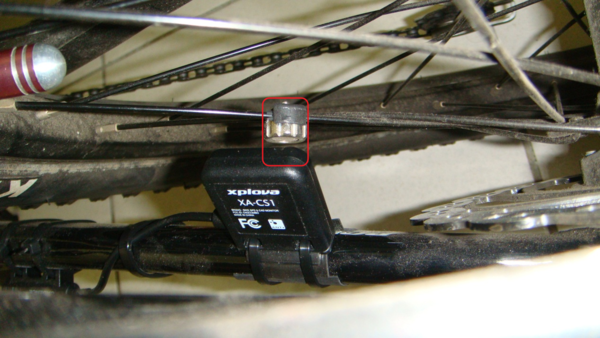

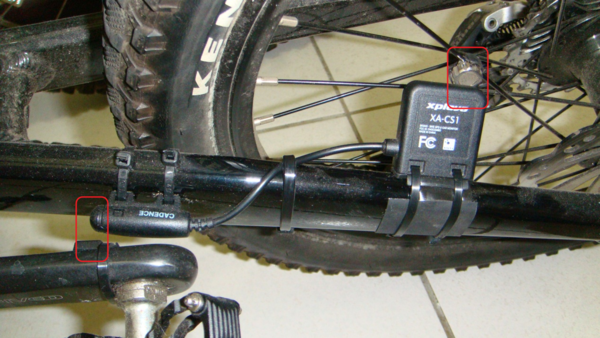

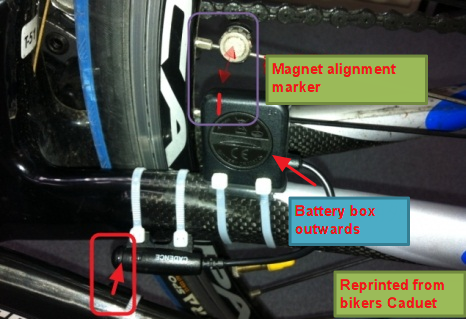

Assembly reference, Actual illustration 1.1)

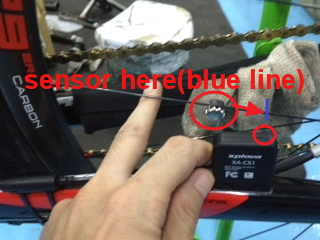

Assembly reference, Actual illustration 1.2)

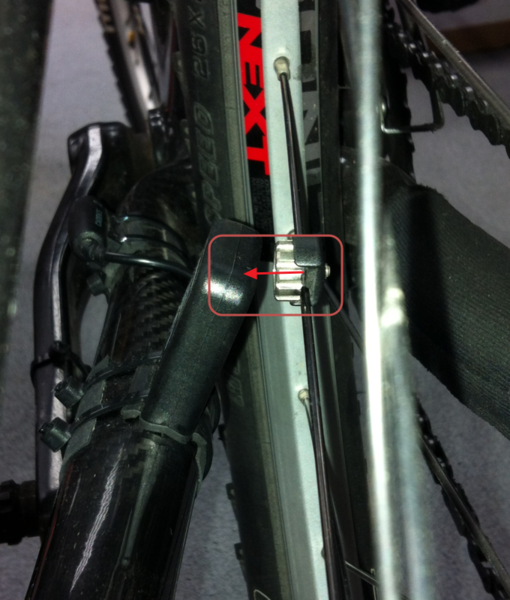

Assembly reference, Actual illustration 1.3)

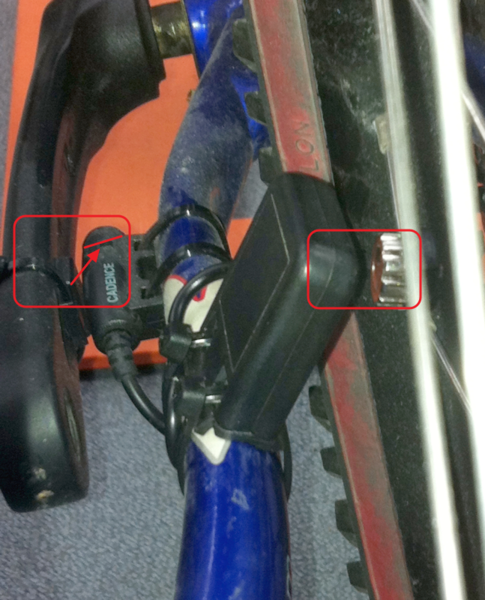

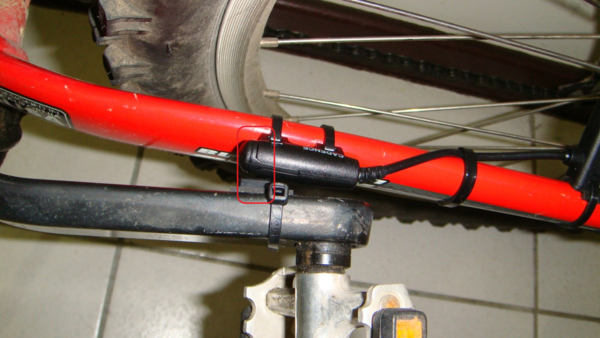

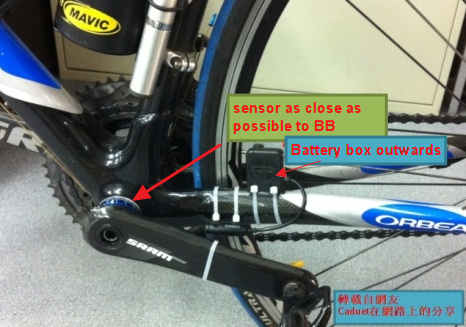

Assembly reference, Actual illustration 2)

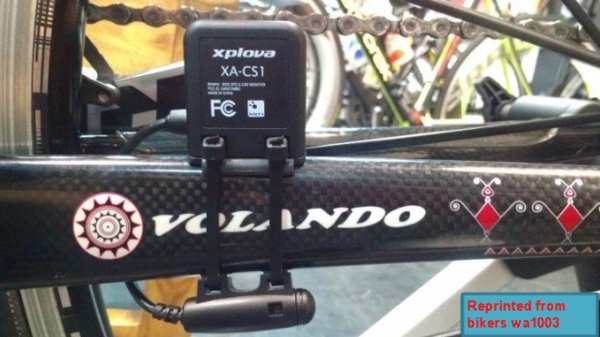

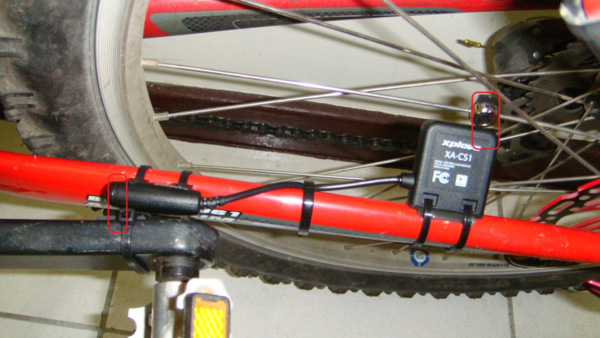

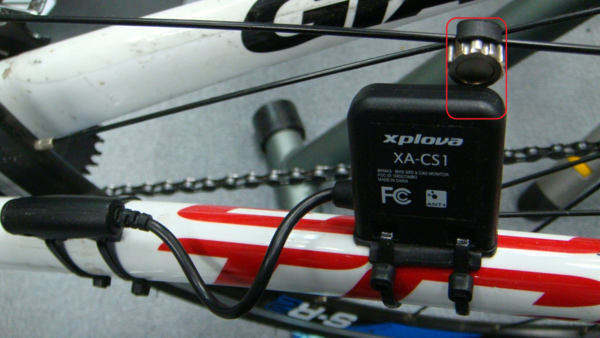

Assembly reference, Actual illustration 3)

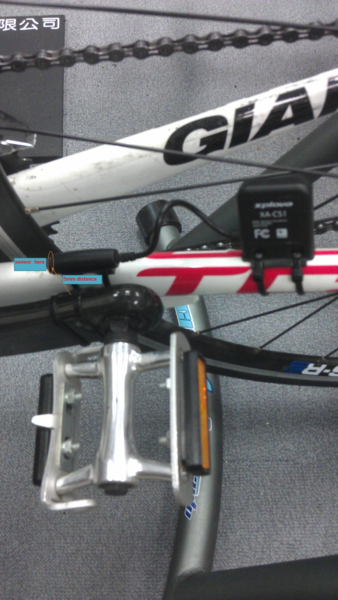

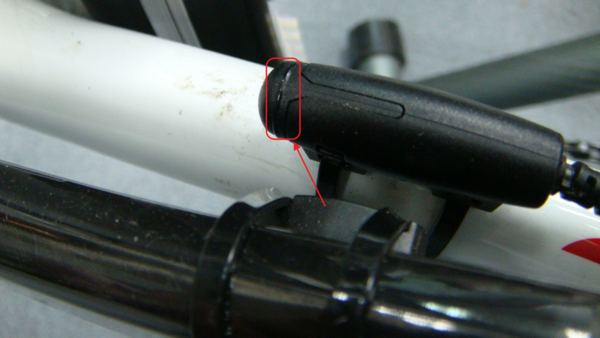

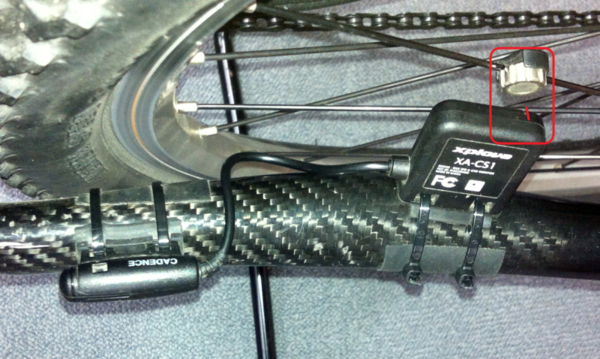

 Assembly reference, Actual illustration 4)

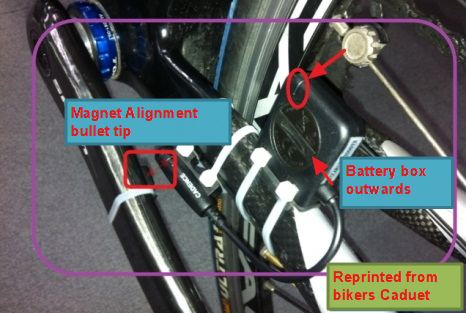

Assembly reference, Actual illustration 5.1)

Assembly reference, Actual illustration 5.2)

Assembly reference, Actual illustration 6.1)

Assembly reference, Actual illustration 6.2)

Assembly reference, Actual illustration 7.1)

Assembly reference, Actual illustration 7.2)

Assembly reference, Actual illustration 7.3)

Assembly reference, Actual illustration 7.4)

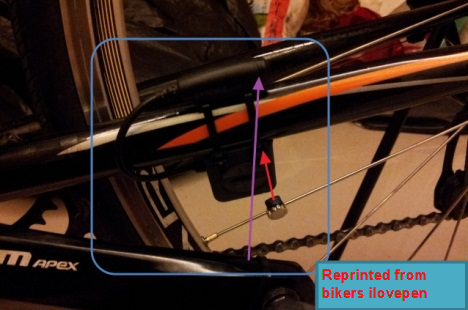

Assembly reference, Actual illustration 8.1)

Assembly reference, Actual illustration 8.2)

Assembly reference, Actual illustration 9.1)

Assembly reference, Actual illustration 9.2)

Please assemble the best installation,  suitable for your bike,

E) If you often ride, I recommends using about three months to be replaced battery (CR2032), in order to get the best  data quality from your cadence sensor and speed sensor.
