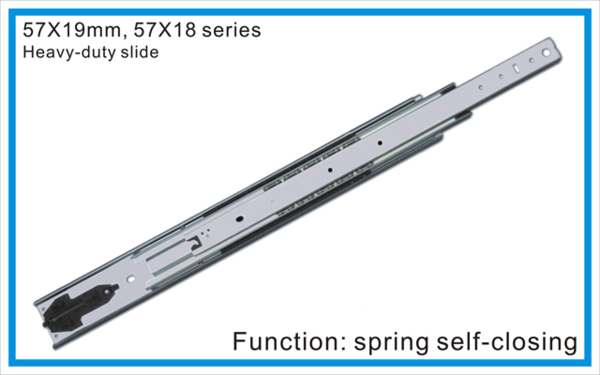

Heavy Duty Full Extension Drawer slide with spring self-closing device
知識學習｜商業管理　2013/04/25 16:13:36

MODEL 5788C
Heavy Duty
Full Extension Drawer slide
with spring self-closing device

Drawer slide Specifications 規格:

Drawer slide Profile 滑軌截面尺寸 :
Side space滑軌間隙 - 19mm(0.75") , Height高度 - 57mm(2.244")
Drawer slide Extension 展長 :
Full extension 全部展出 , ( Option選擇 : Overtravel 1" 超展 1inch )
Drawer slide Load rating 荷重 :  200 LBS (91KGS)
Drawer slide Size 滑軌長度 :  300mm - 1000mm
Drawer slide Finish 表面處理 :
Clear Zinc-plated(ZP)白鋅電鍍 , Black Zinc-plated(BZP)黑鋅電鍍 ,
Black Electric Dipping (BED)電著黑色 , Yellow Zinc-plated(YZP)五彩鍍鋅.
Drawer slide Material 材料 :  Work hardened cold rolled steel 冷軋鋼.

Drawer slide Features 特徵:

  •  Action sequence in both directions by two stage detent function.

在兩個方向上的行動順序由兩個階段的制動功能。

  •  silent movement

    靜音滑動。

  • With spring self-closing device

    彈簧自關裝置

Drawer slide Applications 應用 :

Heavy lateral filing cabinets 重型橫式檔案櫃.
Large storage drawers 大型儲存抽屜.
Electronic racks 電子機架，
Anywhere a heavy duty full extension slide is required.
任何需要重型全展滑軌的地方皆可使用。
